YGL-180G Multifunctional Hydraulic Drilling Rig

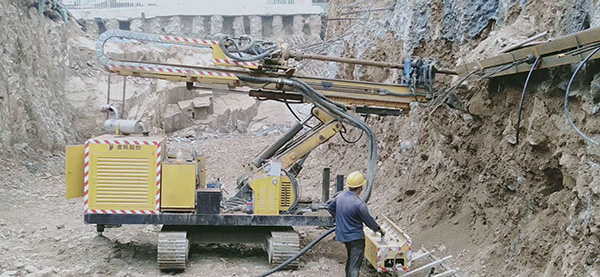

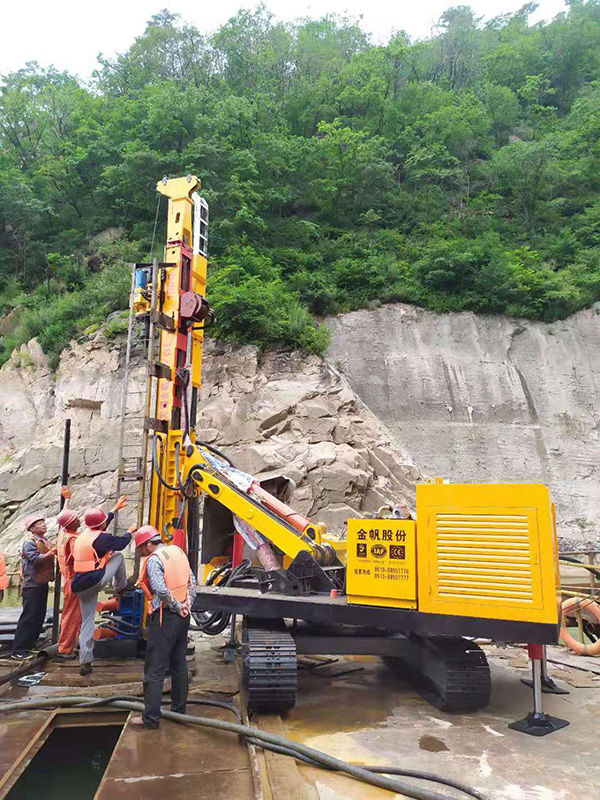

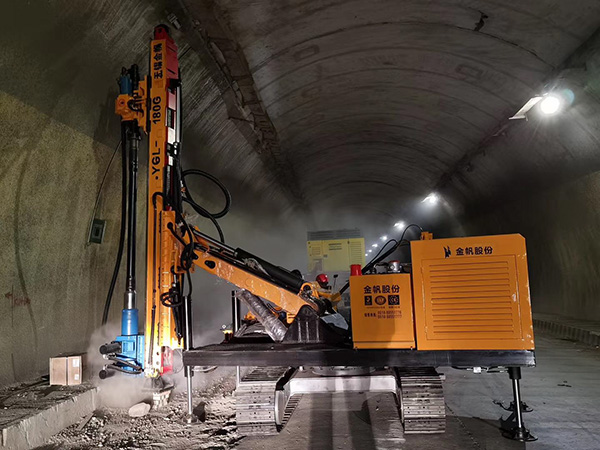

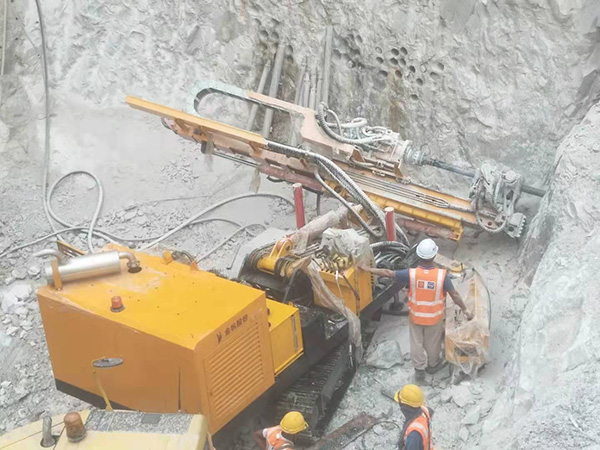

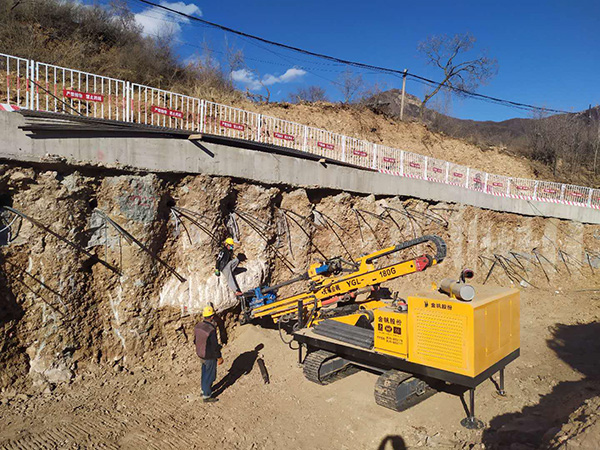

- Product images
- Product description
-
-
Introduction Drilling rigs are mainly suitable for the construction of large tonnage prestressed anchor holes or drainage holes in geotechnical engineering such as hydropower stations, railways, and highway slopes, as well as the construction of urban deep foundation pit support and foundation reinforcement engineering holes, and the construction of ground source heat pump holes; Also applicable for landslide and rock collapse prevention and control engineering; And meet the survey and construction requirements for tunnel pipe shed support holes, grouting reinforcement holes, small foundation pile holes, and hydrological wells.
Application YGL-180G crawler type engineering drilling rig is a drilling equipment that is loaded on a crawler chassis, fully hydraulic driven, and suitable for multi angle and multi-directional drilling. It is suitable for the following process methods:
●Non circulating liquid spiral drilling (dry drilling)
●Air downhole hammer (pneumatic impactor) drilling
●Mud positive circulation drilling
●Air DTH hammer and pipe drilling
●Single action double pipe drilling
●Simultaneous drilling of casing and drill pipe
●The large arm can swing left and right, and the angle of the foundation pit can be drilled
Drilling rigs are suitable for various drilling techniques and have great adaptability to various formations and complex working conditions. They can effectively solve the problem of difficult drilling in loose cover formations, gravel layers, and fractured bedrock formations, and have a wide range of applications.
Technical Parameter
|
Model(m)
|
YGL-180G
|
|
Borehole depth(m)
|
100~200
|
|
Borehole diameter(mm)
|
Ф110～350
|
|
Drill pipe inclination angle(mm)
|
10~90°
|
|
Horizontal hole height(m)
|
3.5M
|
|
Output speed rpm
|
40/80 130~180
|
|
High output torque Nm
|
9000
|
|
Provide progress mm
|
3500
|
|
Large feeding/Pulling force kN
|
45/65
|
|
Input power
|
Firewood
|
132KW 东风康明斯
|
|
Electricity
|
55+37KW
|
|
Chassis Model
|
PD135SS
|
|
Overall Dimension(m)
|
6350*2100*2950
|
|
Drilling rig quality(T)
|
10
|
