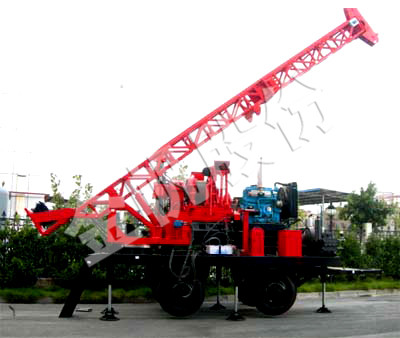

• Introduction The XY-5TR core drilling equipment is a new type of drilling equipment that uses the XY-5 vertical axis core drilling rig as the main body and integrates drilling towers, mud pumps, and trailer chassis; Not only suitable for straight hole drilling, but also more suitable for inclined hole drilling. Its structural type and drilling method will undoubtedly become the dominant trend in the development of traditional vertical axis core drilling rigs both domestically and internationally.

  Main features ● This equipment is mounted on a trailer chassis and can be towed by motor vehicles. The convenient and rapid relocation of holes greatly reduces the auxiliary labor intensity of workers. During the operation of the drilling rig, the hydraulic support legs of the chassis can be used to support the weight of the entire machine and the weight of the drilling tools inside the borehole, making it convenient and quick to adjust the hole position, and ensuring safety and reliability during operation.
  ● This equipment can not only be equipped with XY-5 core drilling machines, but also with other domestically produced core drilling machines of different models.
  ● The mast winch assembly can rotate flexibly and freely to meet the position requirements of transportation and drilling in two different states. The lifting and lowering of the mast (drilling tower) is completed by two hydraulic cylinders, and the inclination angle of the drilling hole can be adjusted freely through the extension and contraction of the hydraulic cylinders when in the working position.
  ● The lower part of the mast is equipped with hydraulic clamps. Its structure adopts foreign advanced methods such as oil cylinder expansion and contraction, inclined sliding clamping, and loosening of drill pipes, ensuring safe and reliable clamping of drill pipes; The larger slip angle and contact length make it particularly suitable for deep hole drilling.

  Technical Parameter

  drilling depth	1500/1150/780m
  Drill pipe specifications	BQ/NQ/HQ
  Opening diameter	φ150mm
  Final hole diameter	φ75mm
  Drilling angle	0～90°
  Rotator type	Large diameter
  Vertical shaft through-hole	φ96
  Vertical shaft speed rpm	straight 87；170；267；301；362；591；928；1262；reverse side 67；230
  Vertical axis travel	500mm
  Vertical axis unloaded downward movement speed	3.42m/min
  Vertical axis no-load upward movement speed	2.28m/min
  Vertical axis upward large lifting capacity	135kN（When the pressure in the oil cylinder chamber is 8MPa）
  Vertical axis downward pressure increase	90kN（When the pressure in the oil cylinder chamber is 8MPa）
  wire speed（m/s）	0.891.742.733.183.746.08
  Weight lifting（kN）	4023.4161410.47.2
  Drum steel wire rope capacity (six layers)	140米
  Specification of steel wire rope	φ18.5mm（6×37）
  Core winch single rope lifting line speed	1.5m/s
  Single rope lifting force	12kN
  Backward movement stroke of drilling rig	450mm
  Rated load of drilling tower	150kN
  Lifting height	7m
  Auxiliary power	Firewood oil engine 80 horsepower Electricity engine 55Kw
  Equipment dimensions (length) × wide × High	Transportation status8800×2250×3600mm Construction status6000×5000×9800mm
  Total weight of equipment	7500kg
  Dragging speed	≤10km/h
