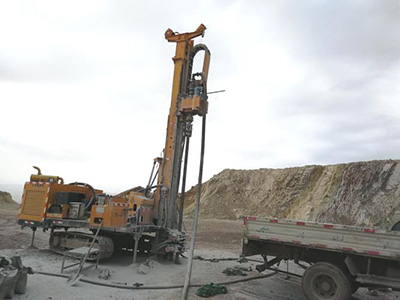

• Applications The YSL-220RC reverse circulation drilling rig is a tracked chassis loading, fully hydraulic driven, and power head drilling rig. It is a drilling equipment suitable for vertical or inclined drilling, and is suitable for the following process methods:
  Non circulating liquid spiral drilling (dry drilling)
  Air Downhole Hammer (Pneumatic Impactor) Drilling
  Mud positive circulation drilling
  Air Downhole Hammer and Pipe Drilling
  Multi medium reverse circulation drilling
  The drilling rig is suitable for different drilling techniques, so it has great adaptability to various formations and complex working conditions. It can effectively solve the problem of difficult drilling in loose cover formations, gravel layers, and fractured bedrock formations, and has a wide range of applications.
  The drilling rig is mainly suitable for the construction of RC reverse circulation/water well drilling, as well as the survey and construction of ground source heat pump holes and small foundation pile holes.



  ModelModel		YSL-220RC
  总重量 Drill rig weight(crawler mounted)	kg	7500
  长x宽x高（运输状态） Length × Width × Height (normal)	mm	6300×2000×2500
  环境温度 Ambient Temperature Range	°C	-10～38
  名义钻孔深度 Nominal Drill Depth	m	200
  Borehole diameter Drill Diameter	mm	130～250
  钻杆动力头Drill head output
  Output speed Output Rotation Speed	rpm	40；80；70;140
  输出扭矩 Max Output Torque	N.m	8500
  动力头给进Stroke of Power Head
  行程 Feeding	mm	3800
  给进力 Thrust Force	kN	60
  提拔力 Lifting Capacity	kN	85
  油泵Oil Pump
  油泵排量 Output volume	ml/r	63+50+25
  油箱容积Tank Capacity	220L
  动力机Engine drive type		6BTA5.9-C180
  功率 Power	kW	132
