Full Hydraulic Top Impact Rotary Crawler Drilling Machine
- Product images
- Product description
-
-

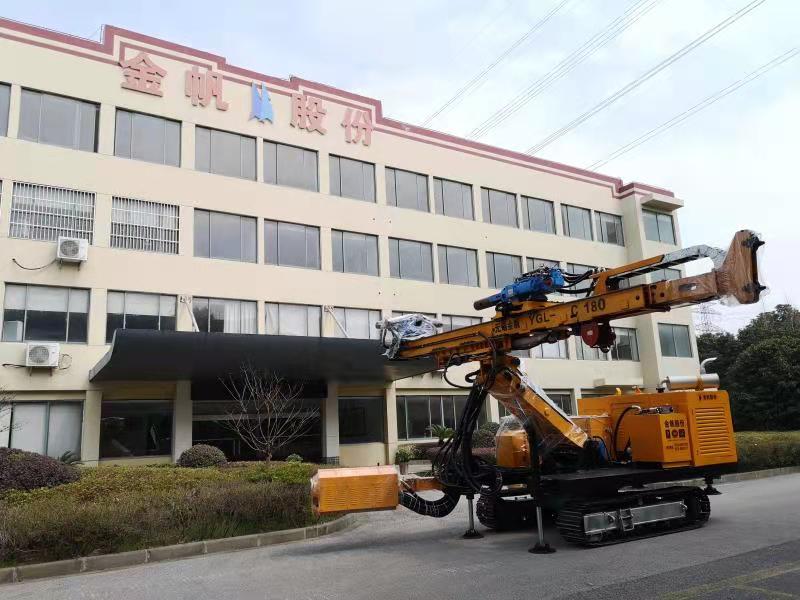

Introduction The YGL-C180 fully hydraulic top impact rotary crawler drilling rig is mainly suitable for the construction of tunnel pipe shed support holes and pilot survey holes, urban deep foundation pit anchor holes, grouting reinforcement holes, water electricity stations, large tonnage prestressed anchor holes or drainage holes on railway and highway slopes, as well as the construction of ground source heat pump holes; And also consider the construction of small foundation pile holes, hydrological well holes, and blasting voids.

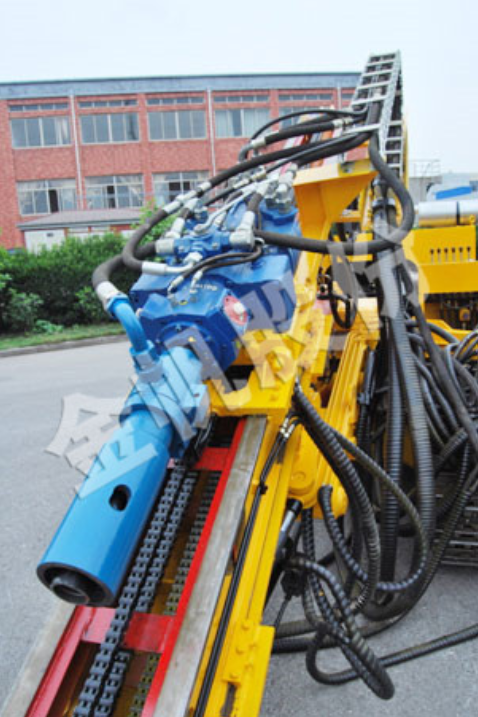

Main features ● Adopting the top hydraulic impact rotary power head imported from Germany, drilling from multiple angles and directions, with excellent performance
● The drilling speed is extremely fast, more than 3-5 times that of traditional rotary drilling rigs
● When drilling into rock, gravel, and soil rock formations, no air compressor is required and there is no dust pollution
● Unique casing drilling technology, which can quickly carry out pipe shed drilling operations and complete hazard removal and reinforcement projects
● In complex formations, double pipe impact rotary drilling (single pipe+casing) can also be carried out to maintain the stability of the hole wall and facilitate the placement of grouting pipes and anchor cables
● Applicable to various drilling techniques, it can effectively solve the difficulty of drilling holes in loose cover strata, gravel layers, fractured strata, as well as mud and sand layers
Technical Parameter
|
Model
|
YGL- C 180
|
|
Drilling parameters
|
|
|
Borehole depthm/Aperturemm
|
150/Φ130
|
|
Drill pipe inclination angle
|
-15~90
|
|
Horizontal hole heightm
|
2050~3050
|
|
Output parameters
|
HB40A
|
Impact
|
|
Output speedrpm
|
32/64;(60/120)
|
400
|
|
High output torqueNm
|
9400
|
1800
|
|
Provide progressmm
|
3500
|
|
Large feeding/pulling force KN
|
45/65
|
|
Power machine model
|
Firewood
|
6BTA5.9-C125
|
|
Electricity
|
Y225M-4/Y200L-4
|
|
Input powerKW
|
Firewood
|
125/2200
|
|
Electricity
|
55+37
|
|
Oil pump specifications
|
Firewood
|
45+45+28(14)
|
|
Electricity
|
71+28(14)/63
|
|
Overall Dimension
|
6100×2100×2350
|
|
Drill weight(kg)
|
10000
|
